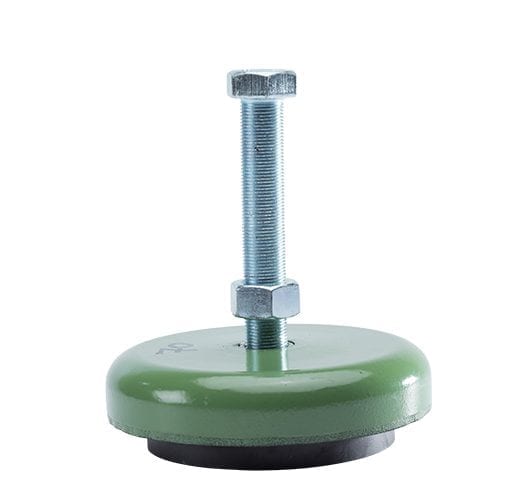

Levelling Feet

Description:

Equipment levelling feet are designed to keep machinery level when placed on uneven or sloped ground. Otherwise known as adjustable equipment feet, they are available to order in various size and load capacity combinations. It is extremely important to have the right materials and sizes of levelling feet for your application, depending on their intended use and load.



Levelling Feet at GMT

With the range of sizes and materials available at GMT, our levelling feet are extremely flexible and suited for different applications. Designed for easy, fast installation, our levelling feet can be offered with ground fixing options, suit a range of conveyor systems and machinery applications, and be approved to medical, food, and hygiene industry standards. Our collection of equipment levelling feet will also help to reduce harmful vibrations. We can design our equipment feet to incorporate noise-absorbing materials for a quieter work environment. Our footplates and spindle materials are made out of various materials, including polyamide, plated steel and stainless steel. The rubber pad material of these parts is oil and water-resistant, ensuring products' longevity in case of contamination of the footplates. The rubber can also be made UV-resistant, non-marking and anti-bacterial. Our standard footplates have been designed for loads up to 500, 900, 1000, and 3000 daN depending on the footplate selected. Our heavy-duty self-aligning footplates can withstand loads of up to 4500 daN. Spindles can be combined with threaded footplate types, enabling customers to specify feet to their exact requirements. The feet can also be specified to have anti-slip rubber pads.



Installation of Our Levelling Feet

Assembling levelling feet is a quick and easy process depending on the combination of spindle, footplate and anti-slip pad required. For standard footplates, the ball at the base of the stud is pressed or gently knocked into place in the opposing female spherical void in the footplate, the nuts can then be threaded onto the spindle and the anti-slip rubber pressed into place on the base. The self-aligning feet are assembled using the assembly set. The spindle is inserted into the base and secured into place using the fastening set threaded fastener via the footplate base into the spindle. A small quantity of our adjustable levelling feet are usually held in stock. Alternatively, the equipment levelling foot range can usually be offered within 1 to 2 weeks lead time and is subject to a minimum order quantity of 20 pieces. If you would like to enquire about purchasing some levelling feet, please contact us, and we will be happy to assist.


Typical Product Dimensions:


Benefits:

Equipment levelling feet are typically used on presses and punching machines, lathes, grinding machines and milling machines, and on very heavy machinery. Adjustable equipment feet allow machinery to be levelled when installed on uneven ground. Adjustable rubber feet have a range of applications and can add grip when used on hard surfaces or industrial settings, as a low-cost anti-vibration solution. Our range of equipment feet come in various sizes to suit your needs.


Product Codes:

ADJ-AMF1011, 110001, ADJ-AMF1012, 110002, ADJ-AMF1013, 110003, ADJ-AMF1014, 110004, ADJ-AMF1015, 110005, ADJ-AMF1016, 110006, ADJ-AMF1017, LEVEL-STD2163-D01, LEVEL-STD2163-D02, LEVEL-STD2163-D03, LEVEL-STD2163-D04, LEVEL-STD2163-D05, LEVEL-STD2163-D06, LEVEL-STD2163-D07, LEVEL-STD2163-D10, LEVEL-STD2163-D11, LEVEL-STD2163-D12, LEVEL-STD2163-D13, LEVEL-STD2163-D14, LEVEL-STD2163-D15, LEVEL-STD2163-D16, LEVEL-STD2163-D20, LEVEL-STD2163-D21, LEVEL-STD2163-D22, LEVEL-STD2163-D23, LEVEL-STD2163-D24, LEVEL-STD2163-D25, LEVEL-STD2163-D26, LEVEL-STD2163-F30, LEVEL-STD2163-F31, LEVEL-STD2163-F32, LEVEL-STD2163-S01, LEVEL-STD2163-S02, LEVEL-STD2163-S03, LEVEL-STD2163-S04, LEVEL-STD2163-S05, LEVEL-STD2163-S06, LEVEL-STD2163-S07, LEVEL-STD2163-S08, LEVEL-STD2163-S09, LEVEL-STD2163-S10, LEVEL-STD2163-S11, LEVEL-STD2163-S12, LEVEL-STD2163-S13, LEVEL-STD2163-S14, LEVEL-STD2163-S15, LEVEL-STD2163-S16, LEVEL-STD2163-S17, LEVEL-STD2163-S18, LEVEL-STD2163-S19, LEVEL-STD2163-S20, LEVEL-STD2163-S21, LEVEL-STD2163-S22, LEVEL-STD2163-S23, LEVEL-STD2163-S24, LEVEL-STD2163-S25, LEVEL-STD2163-S26, LEVEL-STD2163-S40, LEVEL-STD2163-S41, LEVEL-STD2163-S50, LEVEL-STD2163-S51, LEVEL-STD2163-S52, LEVEL-STD2163-S53, LEVEL-STD2163-S54, LEVEL-STD2163-S55, LEVEL-STD2163-S56, LEVEL-STD2163-S57, LEVEL-STD2163-S58, LEVEL-STD2163-S59, LEVEL-STD2163-S60, LEVEL-STD2163-S61, LEVEL-STD2163-S62, LEVEL-STD2163-S63, LEVEL-STD2163-S64, LEVEL-STD2163-S65, LEVEL-STD2163-S66, LEVEL-STD2163-S67, LEVEL-STD2163-S68, LEVEL-STD2163-S69, LEVEL-STD2163-S70LEVEL-STD2163-S71, LEVEL-STD2163-S72, LEVEL-STD2163-S73, LEVEL-STD2163-S74, LEVEL-STD2163-S75, LEVEL-STD2163-S90, LEVEL-STD2163-S91, LEVEL-ADJ2164-F01, LEVEL-ADJ2164-F02, LEVEL-ADJ2164-F03, LEVEL-ADJ2164-D01, LEVEL-ADJ2164-D02, LEVEL-ADJ2164-D03, LEVEL-ADJ2164-F10, LEVEL-ADJ2164-D04, LEVEL-ADJ2164-S01, LEVEL-ADJ2164-S02, LEVEL-ADJ2164-S03, LEVEL-ADJ2164-S04, LEVEL-ADJ2164-S05, LEVEL-ADJ2164-S06, LEVEL-ADJ2164-S07, LEVEL-ADJ2164-S08, LEVEL-ADJ2164-S09, LEVEL-ADJ2164-S20LEVEL-ADJ2164-S21, LEVEL-ADJ2164-S22, LEVEL-ADJ2164-S23, LEVEL-ADJ2164-S24, LEVEL-ADJ2164-S25, LEVEL-ADJ2164-S26LEVEL-ADJ2164-S27, LEVEL-ADJ2164-S28, LEVEL-ECO2165-F01, LEVEL-ECO2165-F02, LEVEL-ECO2165-F03, LEVEL-ECO2165-S01, LEVEL-ECO2165-S02, LEVEL-ECO2165-S03, LEVEL-ECO2165-S04, LEVEL-ECO2165-S05, LEVEL-ECO2165-S06, LEVEL-ECO2165-S07, LEVEL-ECO2165-S08, LEVEL-ECO2165-S09, LEVEL-ECO2165-S10, LEVEL-ECO2165-S11, LEVEL-ECO2165-S12, LEVEL-ECO2165-S13, LEVEL-ECO2165-S14, LEVEL-ECO2165-S15, LEVEL-ECO2165-S16, LEVEL-ECO2165-S17, LEVEL-ECO2165-S18, LEVEL-ECO2165-S19, LEVEL-ECO2165-S20LEVEL-ECO2165-S21, LEVEL-ECO2165-S22, LEVEL-ECO2165-S23, LEVEL-ECO2165-D01, LEVEL-ECO2165-D02, LEVEL-ECO2165-D03, LEVEL-END2166-S01, LEVEL-END2166-S02, LEVEL-END2166-S03LEVEL-END2166-S04, LEVEL-END2166-S05, LEVEL-END2166-S06, LEVEL-END2166-S07, LEVEL-END2166-S08, LEVEL-END2166-S09, LEVEL-END2166-S1LEVEL-END2166-S11, LEVEL-END2166-S12, LEVEL-END2166-S13, LEVEL-END2166-S14 /
