Anti-Vibration Sandwich Mounts: Benefits for Heavy-Duty Applications

Reducing Vibration in Demanding Environments

In heavy-duty industries such as construction, mining, defence, and aerospace, equipment is constantly exposed to high levels of vibration, shock, and stress. Without proper control, vibration can shorten machinery lifespan, cause operator fatigue, and increase maintenance costs. One of the most effective solutions for these environments is the anti-vibration sandwich mount, a robust and versatile component designed to absorb shocks, dampen vibration, and stabilise equipment under extreme loads.

What Are Anti-Vibration Sandwich Mounts?

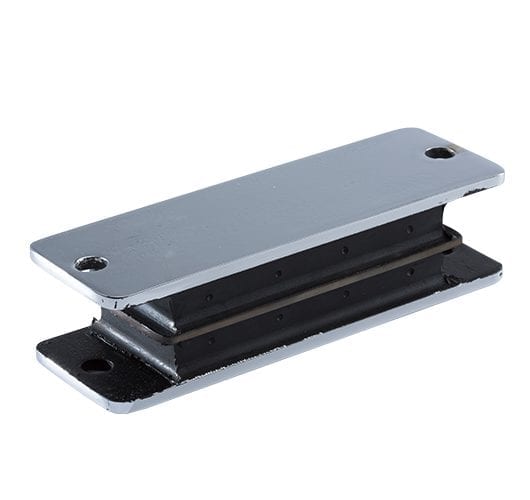

Anti-vibration sandwich mounts are specialised components consisting of layers of rubber bonded between metal plates. This layered design allows them to absorb and dissipate vibrational energy effectively, while also bearing heavy static and dynamic loads. The mounts are typically fixed between a machine and its base, acting as a buffer that prevents vibration from transferring into surrounding structures.

The name “sandwich” comes from the way the rubber is enclosed between two metal elements, forming a layered structure that balances flexibility and rigidity. This makes rubber sandwich mounts particularly suitable for high-load applications where both damping and stability are essential.

How Are Sandwich Mounts Made and Why Is Rubber Used?

The manufacturing process of vibration sandwich mounts combines precision metalwork with elastomer engineering. Steel or aluminium plates are prepared and treated, after which high-grade natural or synthetic rubber is bonded under pressure and heat. This ensures a durable connection capable of withstanding repeated compression and tension.

Rubber is central to the performance of sandwich anti-vibration mounts. It provides elasticity, allowing the mount to compress under load and rebound without permanent deformation. Rubber also has inherent damping properties, converting vibrational energy into heat, which reduces resonance and protects machinery. Synthetic rubbers such as neoprene or nitrile are often chosen for environments with exposure to oils, fuels, or high temperatures, ensuring long-term durability.

Design Features of Vibration Sandwich Mounts

The design of anti-vibration sandwich mounts is tailored to balance strength with vibration isolation. The rubber element is engineered in terms of hardness, thickness, and shape to provide precise damping characteristics. Metal plates, studs, or threaded inserts are incorporated to make installation simple and secure across a wide range of machinery.

Some large sandwich mounts feature additional reinforcement to handle particularly heavy equipment, while others are compact for use in smaller machinery or sensitive instruments. The versatility of design makes these mounts suitable for diverse applications, from industrial engines to aerospace systems.

Benefits of Sandwich Mounts for Heavy-Duty Applications

The primary advantage of sandwich anti-vibration mounts is their ability to combine vibration isolation with high load-bearing capacity. This makes them especially effective in industries where heavy equipment must run reliably under challenging conditions.

They reduce wear on machinery by preventing excessive vibration from reaching critical components, lowering maintenance costs and extending operational life. For operators, these mounts minimise transmitted noise and vibration, improving comfort and reducing fatigue during long shifts. In environments where precision is critical, such as defence or aerospace, they also protect sensitive instruments from performance degradation caused by continuous vibration.

Noise Reduction and Stability Advantages

Noise generated by vibration can be a significant issue in both industrial and transport settings. By absorbing vibration at its source, rubber sandwich mounts lower noise levels throughout machinery and surrounding environments. This contributes to compliance with workplace noise regulations and creates safer, more comfortable conditions for staff.

Stability is another key advantage. By anchoring equipment firmly while isolating vibration, anti-vibration sandwich mounts prevent unwanted movement, which is particularly important for mobile machinery or systems exposed to dynamic forces such as shock loads or uneven terrain.

Large Sandwich Mounts for Industrial Equipment

For heavy-duty industrial machinery such as crushers, generators, and marine engines, large sandwich mounts are often required. These mounts are engineered to handle extreme static and dynamic loads without losing damping efficiency. Their robust construction makes them ideal for applications where smaller mounts would be insufficient, ensuring both stability and performance in large-scale operations.

Aerospace and Aircraft Applications of Sandwich Mounts

The aerospace sector is among the most demanding fields for vibration isolation. Aircraft anti-vibration mounts, including sandwich mounts, are used to support engines, avionics, and cabin systems. In these applications, mounts must cope with constant vibration, temperature extremes, and dynamic stresses while maintaining performance over long service intervals.

By isolating sensitive equipment, aerospace anti-vibration mounts ensure flight safety, improve passenger comfort by reducing cabin noise, and contribute to the overall durability of aircraft systems.

How Sandwich Mounts Are Used in Fan and Machinery Systems

In HVAC systems, pumps, and industrial fans, vibration can cause excessive noise, structural fatigue, and reduced efficiency. Sandwich mounts are widely used in these systems to isolate fans, compressors, and other rotating machinery. By preventing vibration transfer to building structures or equipment frames, they improve system longevity and reduce noise pollution in both commercial and residential environments.

Sandwich Mounts UK Manufacturers and Suppliers

The UK has a long history of expertise in vibration control technology, with several leading sandwich mounts UK manufacturers producing components for global industries. Companies such as GMT Rubber specialise in designing bespoke anti-vibration sandwich mounts tailored to client requirements, ensuring high-quality performance in demanding environments. These manufacturers often provide not just products, but also technical advice and support for optimal mount selection and installation.

Challenges and Considerations in Sandwich Mounting Design

While anti-vibration sandwich mounts are highly effective, proper design and specification are critical. Choosing the wrong rubber compound, hardness, or size can reduce performance and even cause premature failure. Environmental factors such as exposure to chemicals, oils, or extreme temperatures must also be considered to ensure long-term reliability.

In addition, correct installation is essential. Over-tightening bolts or misaligning mounts can compromise their performance. Regular inspections and maintenance checks are recommended to confirm that mounts continue to function effectively under operational loads.

Future Innovations in Anti-Vibration Sandwich Mounts

Advances in materials science are driving innovation in sandwich mounting design. New elastomers with enhanced resistance to temperature, chemicals, and fatigue are being developed, extending service life even further. Composite materials are also being explored to reduce weight while maintaining strength, particularly for aerospace and defence applications.

With the growing emphasis on sustainability, future anti-vibration sandwich mounts may also incorporate recyclable or eco-friendly materials without compromising performance, aligning with industry trends towards greener engineering solutions.

FAQs

What are anti-vibration sandwich mounts?

They are layered rubber and metal components designed to isolate vibration and absorb shocks in heavy-duty machinery.

Why are sandwich mounts used in heavy-duty applications?

They provide excellent vibration damping and load-bearing capacity, making them ideal for large industrial and transport equipment.

How do sandwich mounts improve machinery performance?

By reducing vibration and noise, they protect sensitive components, extend machinery lifespan, and enhance operator comfort.

Which industries benefit most from sandwich mounts?

Construction, mining, marine, defence, aerospace, and rail are key sectors that rely on them.

Are sandwich mounts durable under tough conditions?

Yes, they are engineered to withstand heavy loads, shocks, and harsh environments while maintaining long-term performance.

Can anti-vibration sandwich mounts be customised?

Yes, they can be manufactured in different shapes, sizes, and materials to suit specific heavy-duty requirements.

Why Sandwich Mounts Are Essential in Heavy-Duty Industries

Anti-vibration sandwich mounts may not be visible in day-to-day operations, but their role in protecting equipment and enhancing performance is critical. From heavy construction machinery to aerospace systems, they reduce vibration, cut noise, and extend the service life of essential equipment.

As industries continue to demand greater reliability, efficiency, and comfort, the importance of sandwich anti-vibration mounts will only increase. With innovation in materials and design, these mounts are set to play an even bigger role in the future of vibration control.
